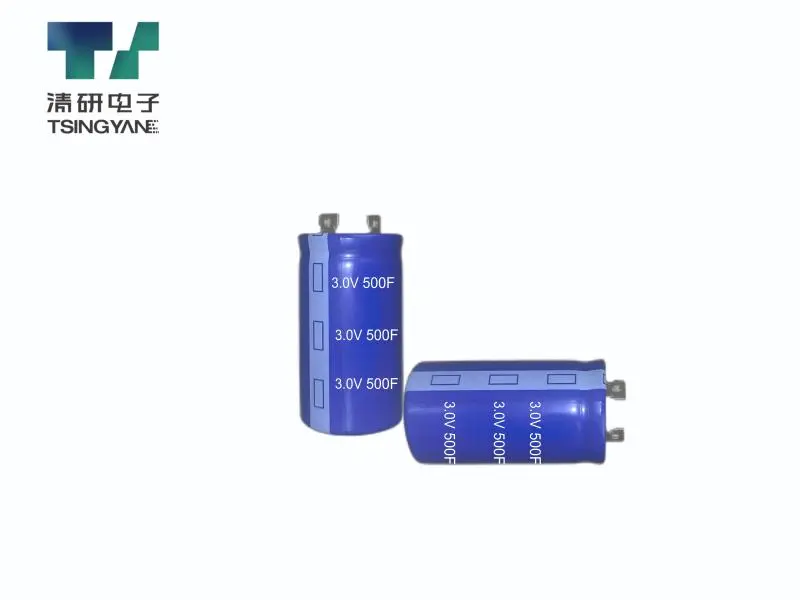

Snap-In Supercapacitor 3.0V 500F

Name: Snap-In Supercapacitor 3.0V 500F
Brand: Shenzhen Tsingyan Electronic Technology Co., Ltd.

The Snap-In Supercapacitor 3.0V 500F is essential for electric vehicle charging stations, smart curtain motors, and drone flight control systems. It stabilizes power supply for charging stations, ensuring efficient charging despite voltage fluctuations. It provides stable power for smart curtain motors, ensuring smooth operation. Additionally, it serves as auxiliary power for drones, maintaining flight stability and safe operation during battery fluctuations.

Buy Snap-In Supercapacitor 3.0V 500F

Parameters of Snap-In Supercapacitor 3.0V 500F

NO.	Item	Specification	Remark
1	Rated Capacitance	500F	Test methods are described below.
2	Rated Voltage	3.0V
3	Capacitance Tolerance	-10%~+20%	@25℃
4	Surge Voltage	3.1V
5	ESRAC	≤ 3.9mΩ	1kHz@25℃
6	ESRDC	≤ 4.6mΩ	Test temperature: 25±2℃
7	Standard Charging Current	6.0A	@25℃ Charge at 6.0(A) constant current to the rated voltage.
8	Standard Discharging Current	6.0A	@25℃ Discharge at 6.0(A) constant current to the half of rated voltage.
9	Power Density	2.93kW/kg
10	Dump Energy	0.63Wh
11	Voltage Holding	≥80%	25℃, After 72 hours
12	Operating Temperature Range	-40~65℃
13	Storage Temperature Range	-20~50℃
14	Maximum Operating Current	23A
15	Weight	about 80g
16	Leakage Current, LC(72h)	≤ 1.88mA	@25℃
17	Maximum Peak Current, 1s	227.3A

Advantages of Snap-In Supercapacitor 3.0V 500F

1. High Power Density

Ideal for applications requiring high power density and stability.

2. Excellent Low-Temperature Performance

Maintains reliable charge/discharge performance in cold environments.

3. Optimized Thermal Management

Superior heat dissipation ensures stability under high power conditions.

Application of Snap-In Supercapacitor 3.0V 500F

Electric Vehicle Charging Station Control Systems: Charging stations for electric vehicles are often exposed to complex outdoor electrical conditions. The 3.0V 500F supercapacitor stabilizes the power supply to the charging station control systems, ensuring smooth charging processes even during voltage fluctuations, thus improving the efficiency of electric vehicle charging.

Smart Curtain Motors: Smart curtains open and close frequently, which requires a stable power supply. The 3.0V 500F supercapacitor provides sufficient power during the startup and shutdown of the curtain motor, ensuring smooth operation, and enhancing the intelligent experience in the home environment.

Drone Flight Control Auxiliary Power: Drones are heavily dependent on battery power for stable flight. The 3.0V 500F supercapacitor serves as auxiliary power for the flight control system, ensuring stability during fluctuations in the primary battery power, maintaining proper flight posture and ensuring safe operation.
