Lithium batteries have become increasingly prevalent, powering devices such as smartphones, laptops, cordless tools, and electric vehicles. While these devices all rely on lithium batteries, the specific type of lithium battery varies depending on the application. This guide explores the six primary types of lithium batteries, their advantages, limitations, and ideal uses.
A lithium battery stores energy by leveraging lithium ions to create an electrical potential difference between its negative and positive poles. A separator, an insulating layer, divides the two sides of the battery, preventing electron flow while permitting lithium ions to pass through. During charging, lithium ions travel from the positive side to the negative side through the separator. When the battery discharges, the ions move in the opposite direction. This movement generates an electrical potential difference, known as voltage, which powers connected devices by forcing electrons through the device, as the separator blocks their direct passage within the battery.
Each type of lithium battery employs distinct active materials and chemical reactions to store energy, resulting in unique benefits, drawbacks, and optimal applications. The names of these batteries derive from their active materials. For instance, the lithium iron phosphate battery, also known as LiFePO4 or LFP, is named after the chemical symbols of its active components.
Lithium iron phosphate batteries, or LFP batteries, utilize phosphate as the cathode material and a graphitic carbon electrode as the anode. These batteries are known for their long lifespan, excellent thermal stability, and strong electrochemical performance. With a nominal voltage of 3.2 volts per cell, connecting four LFP cells in series produces a 12.8-volt battery, making them a popular choice for replacing lead-acid deep-cycle batteries. LFP batteries offer significant advantages, including durability, a lifecycle rating of 2,000 cycles or more, and inherent safety due to low-resistance materials. Their thermal runaway threshold is approximately 518 degrees Fahrenheit, making them one of the safest lithium battery options, even when fully charged. Additionally, LFP batteries can be discharged up to 80% or even 100% without significant damage, unlike lead-acid batteries. However, they have a relatively low specific energy compared to other lithium types and may underperform in cold temperatures, which can limit their suitability for high-cranking applications.
Lithium cobalt oxide batteries, or LCO batteries, are characterized by high specific energy but low specific power, meaning they excel at delivering power over extended periods in low-load scenarios but struggle in high-load applications. Historically common in portable electronics like smartphones, tablets, laptops, and cameras, LCO batteries are losing favor due to the high cost of cobalt and safety concerns. Their primary advantage is their ability to provide sustained power in low-load conditions. However, LCO batteries have notable drawbacks, including a short lifespan of 500 to 1,000 cycles, high costs, and low thermal stability, which raises safety risks. Their limited specific power further restricts their use in high-load applications, contributing to their declining popularity.
Lithium manganese oxide batteries, or LMO batteries, use lithium manganese oxide as the cathode material, creating a three-dimensional structure that enhances ion flow, reduces internal resistance, and improves current handling and thermal stability. These batteries are commonly used in portable power tools, medical instruments, and some hybrid and electric vehicles. LMO batteries offer rapid charging, high specific power for delivering strong current, and better thermal stability than LCO batteries, allowing safe operation at higher temperatures. Their chemistry can be tuned for either high-load or long-life applications, adding versatility. However, their lifespan is relatively short, typically lasting 300 to 700 charge cycles, which is a significant limitation compared to other lithium battery types.
Lithium nickel manganese cobalt oxide batteries, or NMC batteries, combine nickel, manganese, and cobalt in the cathode to create a stable chemistry with high specific energy. Nickel provides high specific energy but lacks stability, while manganese offers exceptional stability but low specific energy; together, they yield a balanced solution. NMC batteries are widely used in power tools, e-bikes, scooters, and some electric vehicles. They boast high energy density, a longer lifespan than cobalt-based batteries, and greater thermal stability than LCO batteries, making them safer and more cost-effective. Their primary drawback is a slightly lower voltage compared to cobalt-based batteries, which may affect performance in certain applications.
Lithium nickel cobalt aluminum oxide batteries, or NCA batteries, deliver high specific energy, decent specific power, and a long lifespan, enabling them to provide substantial current over extended periods. These qualities make NCA batteries a preferred choice for electric vehicles. Their high energy density and respectable lifespan are key advantages, supporting demanding applications. However, NCA batteries are less safe than other lithium technologies due to lower thermal stability and are relatively expensive, which may deter their use in cost-sensitive applications.
Lithium titanate batteries, or LTO batteries, differ from other types by using lithium titanate in the anode instead of graphite, paired with LMO or NMC as the cathode chemistry. This configuration results in an exceptionally safe battery with rapid charging, a long lifespan, and a wide operating temperature range. LTO batteries are employed in diverse applications, including electric vehicles, charging stations, uninterruptible power supplies, renewable energy storage, telecommunications systems, and aerospace and military equipment. Their benefits include fast charging, excellent safety due to high stability, and durability across extreme conditions. However, LTO batteries have low energy density, storing less energy relative to their weight, and are costly, posing challenges for widespread adoption.
Not all batteries rely on lithium, as lithium batteries are a relatively recent innovation that is gradually replacing older technologies. Lead-acid deep-cycle batteries, long a standard for gas-powered vehicles due to their low upfront cost, remain prevalent despite lithium's growing presence in this market. Additionally, alkaline batteries, such as AA and AAA batteries found in stores, use zinc and manganese dioxide for energy storage and dominate the consumer battery market. Before lithium rechargeable batteries became widespread, nickel-cadmium (NiCad) batteries, which use nickel oxide hydroxide and metallic cadmium, were the primary rechargeable option. Though less common today, NiCad batteries are still in use, but lithium batteries are increasingly dominating the rechargeable battery market.
Lithium cobalt oxide (LCO) batteries are the most prevalent type, powering a wide range of consumer electronics, including smartphones, laptops, tablets, and digital cameras. Their widespread use in these devices underscores their dominance in the lithium battery market.

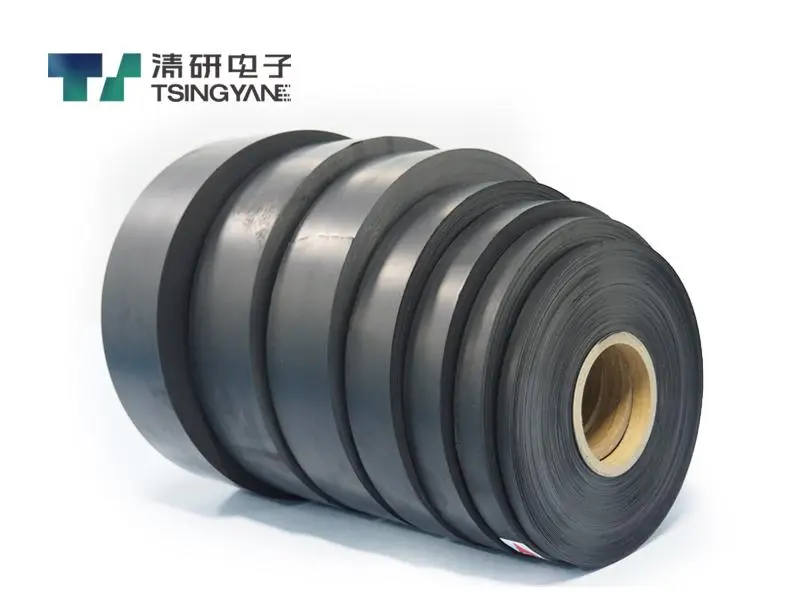

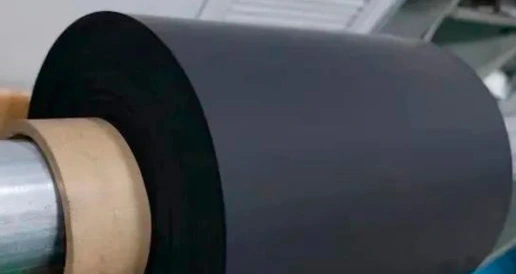

Tsingyan pioneers the development of Dry-Process Lithium-Ion Battery Electrodes, offering a sustainable, solvent-free solution for advanced energy storage. Their product portfolio includes dry electrodes for lithium-ion batteries and supercapacitors, featuring specialized options like Silicon-based (SiC) anodes, LiFePO₄ (LFP) cathodes, NCM cathodes, and Graphite anodes, alongside hybrid supercapacitors and supporting equipment. Tsingyan’s dry electrodes leverage a pre-lithiation process to enhance energy density, a hybrid electrochemical mechanism balancing capacitive and lithium intercalation reactions for stable high-power performance, and an optimized structure for high-voltage operation. This innovative technology ensures superior energy storage capacity, efficiency, and adaptability, making Tsingyan a key player in next-generation lithium-ion batteries, supercapacitors, and hybrid energy storage systems.
